ATX NETWORKS PCM55SAW 550-MHZ CHANNELIZED PLL SAW-FILTERED A/V MODULATOR - CHANNEL OPTIONS 50-62 (NN-ZZ)

ATX Networks PCM55SAW 550-MHz Channelized PLL SAW-Filtered A/V Modulator - Channel Options 50-62 (NN-ZZ)



ATX Networks PCM55SAW 550-MHz Channelized PLL SAW-Filtered A/V Modulator Features

  • 55 dBmV minimum output for a 64 dB in-band carrier to noise ratio provides superior picture quality
  • 82 Channel frequency range 54 MHz to 550 MHz (CATV 2~13, A1~A5, A~PPP)
  • SAW filtered IF for superior adjacent channel performance enables drop-in channel expansion
  • BTSC Stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
  • Front panel controls and a convenient -30 ± 10 dbMv output test point
  • IRC and HRC offsets available for frequency settings in systems using offset channels
  • Auxiliary AC outlet for convenience
  • Optional PAL format channels available
  • UL Approved

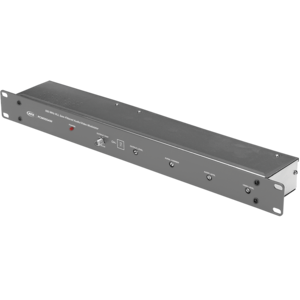

ATX Networks PCM55SAW SAW-Filtered A/V Modulator

  • Audio Frequency Response: 50 to 15,000 Hz
  • Audio Input Connection: 600 Ω F-Female Unbalanced
  • Audio Input Type: Monaural/MTS Baseband
  • Dimensions: 19″ (W) x 3″ (D) x 1.75″ (H)
  • Power Output Receptacle: Yes
  • RF Output Connection: 75 Ω F-Female
  • RF Output Level: 55 dBmV
  • Spurious Output: > -60 dBc with A/V ratio @ -15 dB
  • Video Frequency Response: ± 1.5 dB
  • Voltage Input: 120VAC
  • Video Input Connection: 75 Ω F-Female
  • Video Signal to Noise: 60 dB
