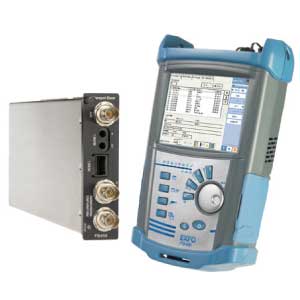

FTB-8120NGE/8130NGE Power Blazer - Next-Generation Multiservice Test Module

EXFO's FTB-8120NGE (2.5/2.7 Gbit/s) and FTB-8130NGE (10/11.1 Gbit/s) Power Blazer test modules have been designed to specifically address such field commissioning and maintenance requirements, providing SONET/SDH, Ethernet and Fibre Chanel test functions in the industry’s smallest and most efficient form factor and setting a new standard for multiservice field testing. The FTB-8120NGE/8130NGE Power Blazer modules offer a wide range of SONET/SDH test functions ranging from simple bit error rate (BER) testing to advanced characterization and troubleshooting procedures.

Key Features and Benefits:

  • DS0/E0 to OC-192/STM-64/OTU2; 10 Mbit/s to 10 Gbit/s LAN/WAN as well as 1x, 2x, 4x and 10x Fibre Channel testing in the industry’s smallest form factor
  • Fully integrated solution for assessing the performance of Ethernet transport networks, including RFC 2544, BER testing and multistream generation and analysis
  • Comprehensive Fibre Channel test capabilities, including framed and unframed BERT, buffer-to-buffer credit estimation and round-trip latency measurements
  • OTN forward error correction (FEC) and optical channel data unit (ODU) multiplex testing capabilities as per ITU-T G.709
  • Ethernet-over-SONET/SDH (EoS) testing via GFP, VCAT and LCAS software options
  • Complete carrier Ethernet services portfolio: PBB-TE, MPLS and IPv4/6 Applications
  • MSTP, MSPP and ROADM field installation, commissioning and service turn-up
  • DSn/PDH and SONET/SDH up to OC-192/STM-64
  • OTN (ITU-T G.709) with FEC testing and ODU multiplexing up to 10.7 Gbit/s
  • 10/100/1000M, GigE and 10 GigE (LAN/WAN) BERT and RFC 2544 testing
  • 1x, 2x, 4x and 10x Fibre Channel testing

Ordering Information

Part NumberDescription
FTB-81xx Next-Generation Multiservice Test Modules

Multiple configurations available. Please check with your TVC representative or www.tvcinc.com for details.
