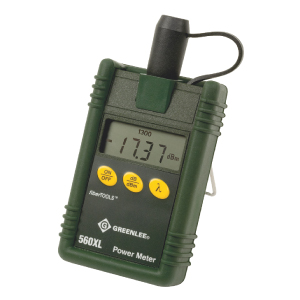

560XL Fiber Optic Power Meter

The 560XL Fiber Optic Power Meter consists of laser and LED sources, and optical power meters. The laser sources are available at 1310nm and 1550nm, while the LED sources are available at 850nm and 1300nm. M90 and AS100 launch conditions are available for the multimode sources. The optical power meters are available with Silicone, InGaAs, and filtered InGaAS diodes. Convenient kits are available for singlemode and multimode uses



  • Easy to use - 3 buttons control all functions
  • Loss measurements in (dB); power measurements in (dBm)
  • 0.01 dB measurement resolution
  • Multi-wavelength storage - store and recall reference power levels for faster, more efficient measurements
  • Snap-On connector interface adapts to FC, SC, & ST connectors
  • Long battery life
  • User selectable shut-off
  • Rugged and splash proof
  • Economically priced
  • Insertion loss measurements
  • Measure power levels
  • Confirm network and device performance
  • InGaAs, Si, and filtered InGaAs detectors available
  • Singlemode and Multimode sources available in all common wavelengths
  • M90 and AS100 launch conditions available
  • Active detector feedback insures stable output power.

Ordering Information

Part NumberDescription
560XL Fiber Optic Power Meter - 850/1300/1310/1550nm; +3 dBm to -60 dBm resolution
