ATX NETWORKS PCM55SAW 550-MHZ CHANNELIZED PLL SAW-FILTERED A/V MODULATOR - CHANNEL OPTIONS 2-13
Product Catalog
>
Signal Origination
>
Modulators
ATX Networks PCM55SAW 550-MHz Channelized PLL SAW-Filtered A/V Modulator Features
55 dBmV minimum output for a 64 dB in-band carrier to noise ratio provides superior picture quality
82 Channel frequency range 54 MHz to 550 MHz (CATV 2~13, A1~A5, A~PPP)
SAW filtered IF for superior adjacent channel performance enables drop-in channel expansion
BTSC Stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
Front panel controls and a convenient -30 ± 10 dbMv output test point
IRC and HRC offsets available for frequency settings in systems using offset channels
Auxiliary AC outlet for convenience
Optional PAL format channels available
UL Approved

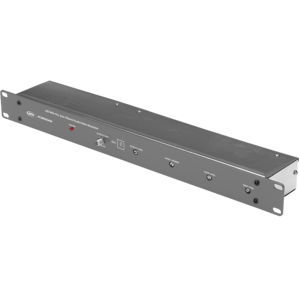

ATX Networks PCM55SAW SAW-Filtered A/V Modulator
Audio Frequency Response: 50 to 15,000 Hz
Audio Input Connection: 600 Ω F-Female Unbalanced
Audio Input Type: Monaural/MTS Baseband
Dimensions: 19″ (W) x 3″ (D) x 1.75″ (H)
Power Output Receptacle: Yes
RF Output Connection: 75 Ω F-Female
RF Output Level: 55 dBmV
Spurious Output: > -60 dBc with A/V ratio @ -15 dB
Video Frequency Response: ± 1.5 dB
Voltage Input: 120VAC
Video Input Connection: 75 Ω F-Female
Video Signal to Noise: 60 dB
