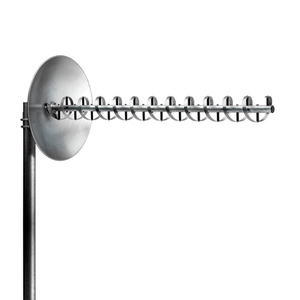

UHF Helical with 24" Dish

The WH1469S UHF helical antenna has a 24 inch ground plane. It covers the entire UHF band (470 - 806 MHz), channels 14 through 69 and is circularly polarized for CATV Off-Air reception.

Electrical performance of the WH14-69, along with the high quality of materials used in the construction of this antenna, have resulted in a superior performance and longevity even when exposed to the most extreme weather conditions.

Specifications:

  • Gain: 17 dBic / 14 dBi
  • Frequency: 470-806MHz
  • Channels: 14-69
  • HPBW Horizontal: 30°
  • HPBW Vertical: 28°
  • VSWR: 1.9 Max / 1.4 Typical
  • Impedance: 75 ohm
  • Polarization: Circular
  • Connector Type: F Connector
  • Max Power: 25 watts
  • Operating Temp: -40 - 158 F (-40 - 70 C)
  • Dimensions: 65" L x 24" W x 6.5" H
  • Weight: 12 lbs
