COMBINER PASSIVE PC1201, DRAKE12-Port Passive Combiner-1-GHz

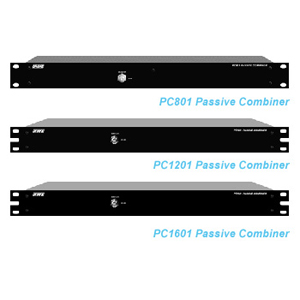

The Drake PC801, PC1201, and PC1601 passive combiners are utilized at the cable television headend to combine the outputs of several modulators or channel processors on to a single coaxial cable. The models offer 8 inputs, 12 inputs, and 16 inputs, respectively. These broadband products accept input levels up to +60 dBmV and pass 5 - 1000 MHz.

• A convenient -20 dB monitor port is provided for front panel technician access.
• It is recommended that unused input ports be terminated for best performance.
