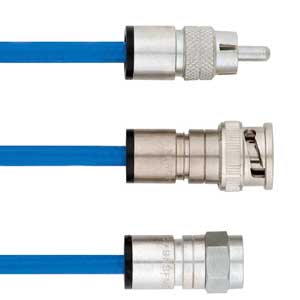

Belden Snap-N-Seal® BNC, RCA & F Male Compression Connectors

These BNC, RCA and F Male compression connectors have been designed for use in Headend and jumper applications on HDTV and precision video cables. With space at a premium and the exacting demands of digital television, using a Snap-N-Seal connector in conjunction with precision HDTV cable will help with your wire management needs.

  • Simple, quick installation using the standard SNSUTL Snap-N-Seal installation tool and CSTMV596 cable stripping tool
  • Nearly 2 decades of proven compression connector experience incorporated in a design for use in HDTV and headend applications
  • True 360 degree compression onto cable ensures superior RF shielding performance
  • To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body
  • The BNC male plug interface is designed to nominal Mil Spec C-39012 with 75 ohm characteristic impedance
  • The RCA type connector is designed to interface with standard RCA-type female jacks
  • Connectors fit SCTE specification mini cables for standard braid
