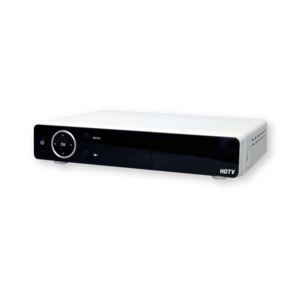

ATX NETWORKS VMX1-1 HIGH-DEFINITION MPEG-2/4 QAM SET-TOP BOX WITH VERIMATRIX CAS

ATX Networks VMX1-1 High-Definition MPEG-2/4 QAM Set-Top Box With Verimatrix CAS

Part of ATX’s all-digital CONDOR solution, the VMX1-1 HD QAM set-top box descrambles signals from the CONDOR headend while converting digital signals to analog for display on legacy TVs. The unit is equipped with a single tuner for the recording of one TV channel and features Verimatrix® CAS for content protection.

ATX Networks VMX1-1 High-Definition MPEG-2/4 QAM Set-Top Box With Verimatrix CAS Features

  • Decodes high-definition and standard-definition signals
  • One tuner for recording one TV channel
  • Decodes MPEG-2 / AVC / H.264 / MPEG-4 video
  • Decodes MPEG-1 Layer I/II and Dolby® AC3
  • Clear QAM and Verimatrix® CAS
  • Supports 64 and 256 QAM inputs
  • Elegant, intuitive, and simple high-definition user interface
  • Auto scanning for QAM channels and programs
  • Supports Electronic Program Guide (EPG)
  • Multiple language support
  • Firmware updates via cable TV network
  • HDMI® and analog composite video/audio outputs
  • PVR via two external USB sticks/drives
  • Coax SPDIF
  • Universal remote control, HDMI and composite cable included

Offering HDMI and composite outputs, the unit provides PVR/media player capabilities, Electronic Program Guide (EPG) support, and an intuitive high-definition interface for ease of use. The VMX1-1 can be deployed as a stand-alone solution for non-encrypted clear QAM applications.

ATX Networks VMX1-1 High-Definition MPEG-2/4 QAM Set-Top Box Specifications

  • Bandwidth: 6 MHz
  • Consumption: 18 Watts max
  • Dimensions: 8.7" x 6.38" x 1.75"
  • Frequency Range: 54 MHz to 862 MHz
  • Input Impedance: 75 Ω
  • Input Level Range: -15 dBmV to 30 dBmV
  • Operating Temperature: 0°C to 40°C
  • Output Voltage: 12 V
  • Standby Consumption: 1 Watt
