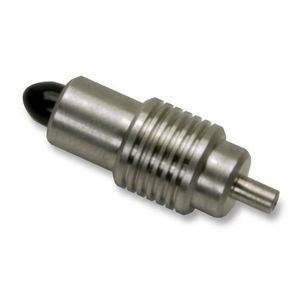

ADAPTER, 1.25MM FOR POCKET SIZE VFL

ADAPTER, 1.25MM  FOR POCKET SIZE VFL

Whether installing or troubleshooting, the Viavi Visual Fault Locator (VFL) is an essential tool that quickly and easily locates problem areas in fiber cables. By pinpointing the exact location of fiber damage, technicians can diagnose, troubleshoot, and fix the problem efficiently. The VFL is also used for conducting continuity tests and performing fiber identification.

Viavi offers two versions of the VFL that are economically priced and ergonomically designed for comfortable handling and portability. Both versions are equipped with a 2.5 mm interface and are compatible with connectors such as SC, ST, and FC, while the 1.25 mm adapter enables connection to LC and MU connectors.

The VFL emits a bright red laser beam (Class II), making the light escaping from the damaged fiber easily visible from a distance. The Continuous/Flash control button lets operators choose between continuous or flashing illumination.

  • Design for ultimate portability
  • Visible wavelength is 650 nm
  • Continuous or Flash illumination
  • Universal connector interface for quick and easy connection
  • 2.5 mm connector input (1.25 mm adapter available)
  • High powered laser (1 mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
  • Includes soft-sided carrying case with belt loop

Ordering Information

Part NumberDescription
FFL-100 Visual Fault Locator, Ruggedized - Includes 2.5 mm adapter
FFL-050 Visual Fault Locator, Pocket Size
FFL-U12 1.25 mm adapter for FFL-100
FFL-050-U121.25 mm adapter for FFL-050
