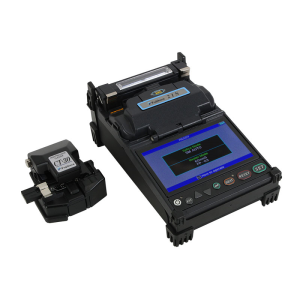

The Fujikura 22S active cladding alignment fusion splicer bridges the long standing gap between core alignment and fixed v-groove fusion splicer technology.
Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedized, full-featured unit offers unmatched versatility for splicing in the most challenging environments. The innovative transit case and work tray provide multiple options for the best utilization of available work space while the long life battery provides power for up to 200 splice cycles which include application of the splice protection sleeve.
The Fujikura 22S incorporates features typically found only in more expensive models. Removable sheath clamps allow the use of fiber holders if desired. The large 4.7" monitor provides a crystal clear image, even in the brightest sunlight, for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimizing downtime for replacement and stabilization. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available. The fully ruggedized chassis provides for shock, dust and moisture protection while the two camera observation system provides for accurate fiber alignment and loss estimation calculations.
The Fujikura 22S is also fully compatible with the FuseConnect line of fusion installable connectors.
- Dual camera, active cladding alignment technology
- World’s smallest active clad alignment splicer at 4.72"W x 7.44"D x 2.8"H
- Fully ruggedized for shock, moisture and dust resistance
- Transit case converts to easy to use workstation
- Extended life electrodes
- Long life battery (200 splices/shrinks per charge)
- Auto start tube heater
