FPM-300 POWER METER

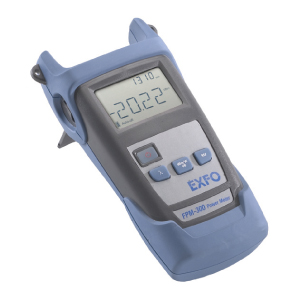

FPM-300 Power Meter

The FPM-300 Power Meter is part of EXFO’s new line of handheld units, which includes the FLS-300 Light Source and the FOT-300 Optical Loss Test Set.

The FLS-300 or FOT-300 units can transmit with a wavelength-identification digital encrypted protocol, enabling the FPM-300 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

Distant Referencing Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

FTTx Ready EXFO’s FPM-300 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.

Key Features and Benefits

  • Highly accurate unit offering 10 calibrated wavelengths and reference values
  • No offset nulling required, reducing measurement time
  • Autonomy of over 300 hours
  • Instrument identification available in six languages

Ordering Information

Part NumberDescription
FPM-302 Power Meter - Ge detector
FPM-302X Power Meter - High-power Ge detector

Multiple configurations available. Please check with your TVC representative for details.
