ETS-1000 ETHERNET ANALYZER

ETS-1000 Ethernet Analyzer

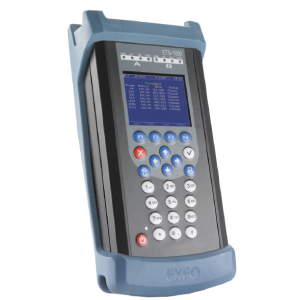

EXFO’s ETS-1000 is a cost-effective handheld Ethernet analyzer enabling service providers to turn-up and install next-generation carrier Ethernet services.

Its compact size combined with a complete feature set makes it the perfect tool for field technicians to reliably validate service-level agreements (SLA) of Ethernet-based services running over metro Ethernet networks.

The ETS-1000 has two completely independent test ports that support the following interfaces: 10/100/1000Base-T, 1000Base-SX, 1000Base-LX and 1000Base-ZX. Using this analyzer, technicians can transmit up to layer-4 traffic with fully configurable virtual local area networks (VLAN), multiprotocol label switching (MPLS) and quality of service (QoS) parameters.

The ETS-1000 supports all of today’s necessary Ethernet/IP field testing capabilities including the RFC 2544, bit-error-rate testing (BERT), packet jitter as well as multistream generation and analysis.

Key Features and Benefits

  • Two 10/100/1000BaseT and GigE independent test ports
  • Throughput, back-to-back, latency and frame loss measurements as per RFC 2544 (asymmetric results)
  • Multistream, up to layer 4 traffic generation and analysis, allowing quality of service (QoS) verification through VLAN, TOS/DSCP prioritization testing
  • MPLS route prioritization validation with up to three MPLS labels (MPLS option)
  • Through mode testing for troubleshooting applications
  • TCP/IP network configuration test suite including, TCP client, DNS lookup and ARP monitor

Ordering Information

Part NumberDescription
ETS-1000 Ethernet Analyzer

Multiple configurations available. Please check with your TVC representative or www.tvcinc.com for details.
