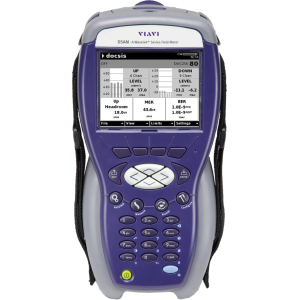

DSAM DIGITAL SERVICE ACTIVATION METER

DSAM Digital Service Activation Meter

Handheld field meter for DOCSIS/EuroDOCSIS cable modem installation; enables cable installers to increase the speed and efficiency in deploying high-speed data and video services.

A Wavetek™ Series Field Meter

The new DSAM DOCSIS 3.0 models provide the best in class combination of full DOCSIS 3.0 testing combined with a powerful Signal Level Meter and QAM analyzer.

Highlights

  • 8 downstream x 4 upstream DOCSIS 3.0 testing
  • Throughput testing of bonded services
  • Up to 304 Mbps down, 120 Mbps up (6 MHz carriers)
  • Up to 400 Mbps down, 120 Mbps up (8 MHz carriers)
  • Gigabit Ethernet port standard
  • Optional Gig E Throughput testing available
  • Improved Digital Carrier testing
  • Deep interleave video BER standard
  • MER range up to 45 dB
  • DQI measurement capability
  • MoCA® compatible
  • Cable Labs®-compliant certificates
  • Legacy support for DOCSIS 1.0, 1.1, and 2.0
  • Includes all measurements and features of previous models
  • Fully featured SLM (Signal Level Meter) with QAM analysis and integrated DOCSIS® cable modem
  • Reduce repeat truck rolls Increase productivity and with comprehensive Home Certification test
  • Consistent and accurate testing and reporting powered by the Tech Complete™ TPP software
  • Powerful troubleshooting of service impairments with DQI, QAM Ingress, and VoIP Check
  • Weatherproof, rugged & lightweight to meet the demands of field technicians
  • Remote meter management with consistent and accurate test reporting powered by the Tech Complete™ TPP software
  • Powerful microprocessor and color display for fast power up and dramatic display clarity, now shipping as DSAMXT
  • 4 to 1000 MHz range with optional 42 MHz, 65MHz, or 85MHz diplexers to match the return path
