PPC P11S60EFORF PERFECT FLEX UNDERGROUND RG11 ORANGE DROP CABLE

PPC P11S60EFORF Perfect Flex Underground RG11 Orange Drop Cable

The PPC P11S60EFORF Perfect Flex Outdoor Drop Cable is sold in increments of 1000ft.  It was designed with underground series 11 standard shield and uses braided 75 Ohm flexible RF coaxial drop cable.

Perfect Flex™ Coaxial Cable Features:

  • Exceptional ELECTRICAL PERFORMANCE from 5 MHz to 3 GHz
  • MICRO-CRACK RESISTANT with superior results in flexural performance
  • Manufactured with 100% RoHS COMPLIANT MATERIALS
  • ADVANCED CORROSION INHIBITORS for quality that is designed to last
  • Compliant with ANSI/SCTE 74, SCTE SPECIFICATION for Braided 75 Ohm Flexible RF Coaxial Drop Cable
  • NEC 830(BMU) AVAILABILITY
  • 100% certified material testing

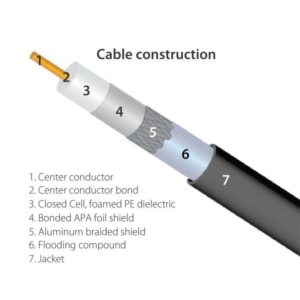

  • 14 AWG [0.064 in. (1.63mm)] copper covered steel center conductor
  • Proprietary center conductor bond
  • Closed cell foamed PE dielectric
  • First shield aluminum-polymer-aluminum laminated tape bonded to dielectric
  • Outer shield of braided 34 AWG aluminum wire
  • Jacket of PE
