PERFECT 10 PVCAT5BLK CAT5E BLACK OUTDOOR UV RESISTANT 1000FT

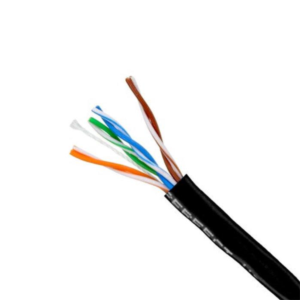

Perfect 10 PVCAT5BLK Cat5E Black Outdoor UV Resistant 1000ft

The Perfect 10 PVCAT5BLK Cat5E Cable has an outdoor UV resistant black PVC jacket and comes in 1000ft lengths. The black PVC jacket It has four twisted pair 24 AWG solid copper conductors with HD-PE insulation. This Cat5 cable is suitable for VOIP and Telephony.

Electrical Characteristics:

  • Impedance: 100 ± 15 ohms
  • Nominal Mutual Capacitance @ 1 KHz: 15 pf / foot
  • Maximum Capacitance Unbalance: 330 pf / 100m
  • Nominal Velocity of Propagation: 70%
  • Maximum Delay (ns/100m) @ 100 MHZ: 538ns
  • Maximum Delay Skew: 45 ns / 100m
  • Maximum DCR Unbalance @ 20° C: 5%
  • Maximum Conductor DC Resistance @ 20°C:9.38 ohms/100m
  • Maximum Operating Voltage - UL: 300 V RMS
  • UL: CM

Construction Characteristics:

  • Number of Pairs: 4
  • Total Number of Conductors: 8
  • AWG: 24
  • Conductor Stranding: Solid
  • Conductor Material: BC-Bare Copper
  • Insulation Material: HD-PE
  • Outer Jacket Material: PVC-Polyvinyl Chloride
  • Outer Jacket Ripcord: Yes
  • Bulk Cable Weight: 29 lbs/1000 ft
  • Max Recommended Pulling Tension: 35 lbs
  • Min. Bend Radius (install): 0.5”
  • Operating Temperature Range: -20°C to +75°C
